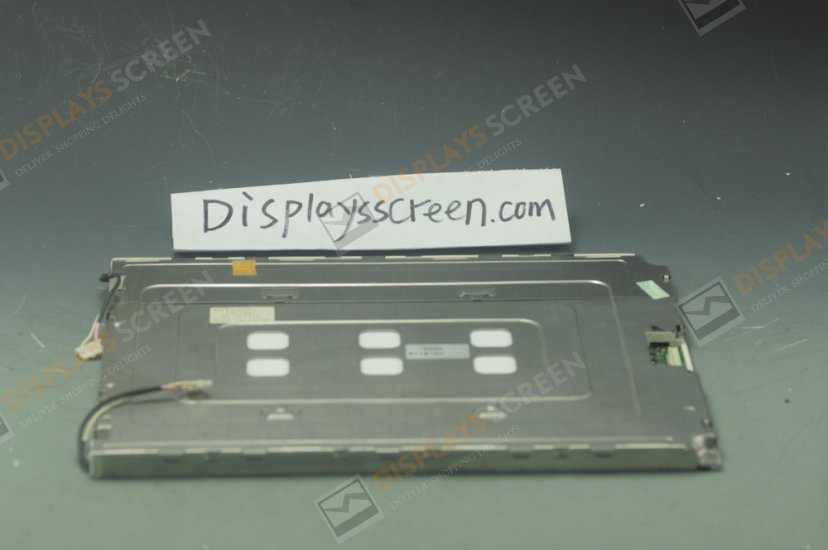

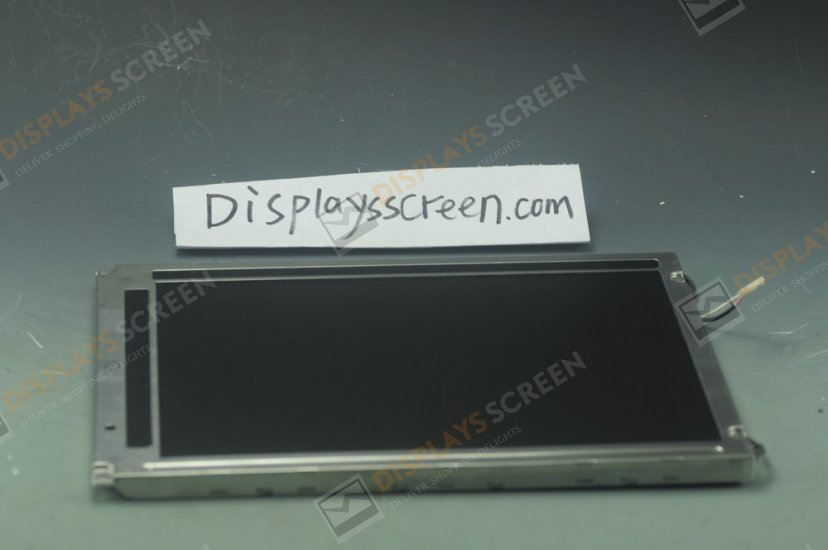

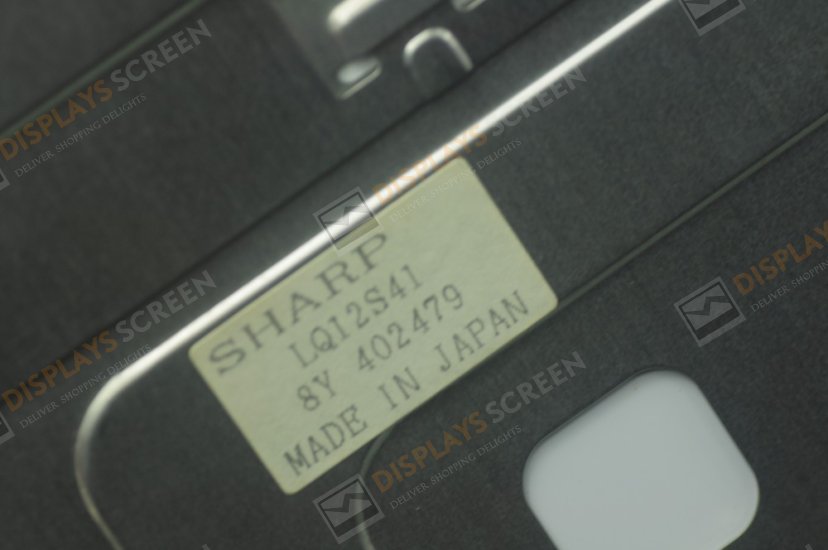

Original LQ12S41 SHARP 12.1" 800×600 LQ12S41 Display

$129.00
SHARP-LHX-504016-15

Quantity Discount
5 +
$122.55
10 +
$119.97
15 +
$117.39
20 +
$116.10
30 +
$113.52
*The discount will be reflected in the payment.
  • Shipping Weight: 1.5kg
  • Units in Stock : 1000
  • Manufactured by: Sharp
  • This product was added to our catalog on Wednesday 15 April, 2015.
Description

Panel Brand:SHARP
Panel Model:LQ12S41
Panel Type:a-Si TFT-LCDPanel
Panel Size:12.1"
Resolution:800(RGB)×600 (SVGA)
Display Mode:TN, Normally White, Transmissive
Surface:Antiglare (Haze 28%), Hard coating (3H)
Brightness:270 cd/m2 (Typ.)
Contrast Ratio:150 : 1 (Min.) (Transmissive)
Display Colors:262K (6-bit)
Response Rime:20/40 (Typ.)(Tr/Td) (ms)
Viewing Angle:70/70/55/55 (Min.)(CR?5) (L/R/U/D)
Lamp Type:CCFL

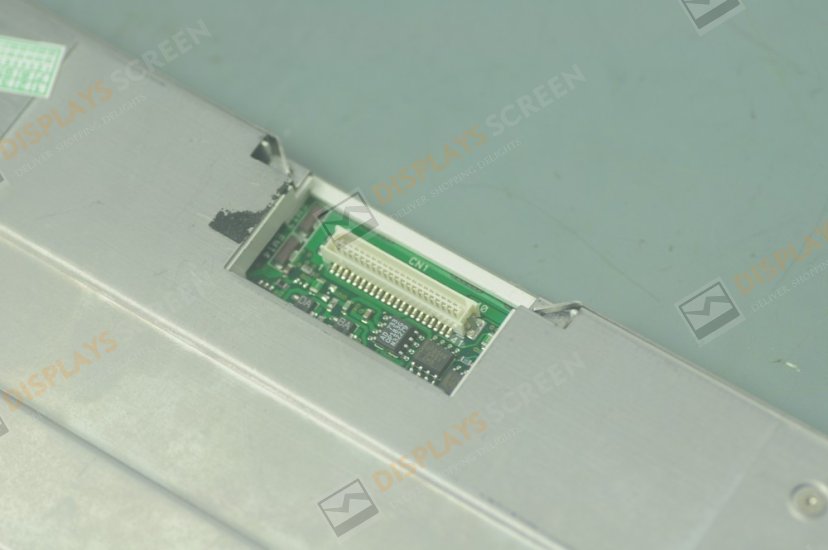

Signal Interface:Parallel RGB (1 ch, 6-bit)
Input Voltage:3.3V (Typ.)(VCC)
