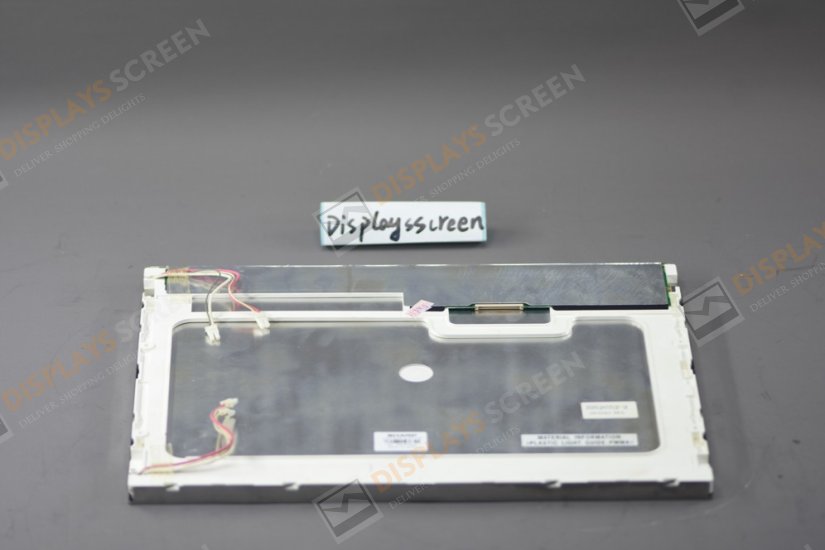

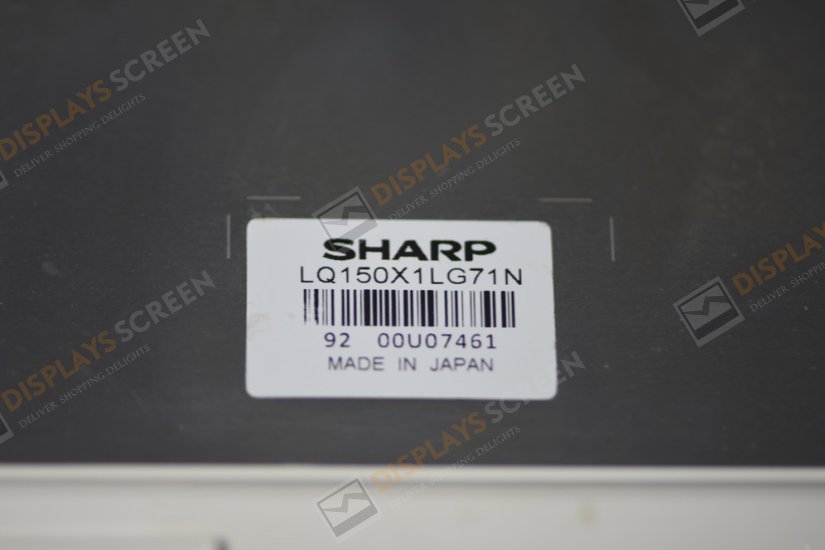

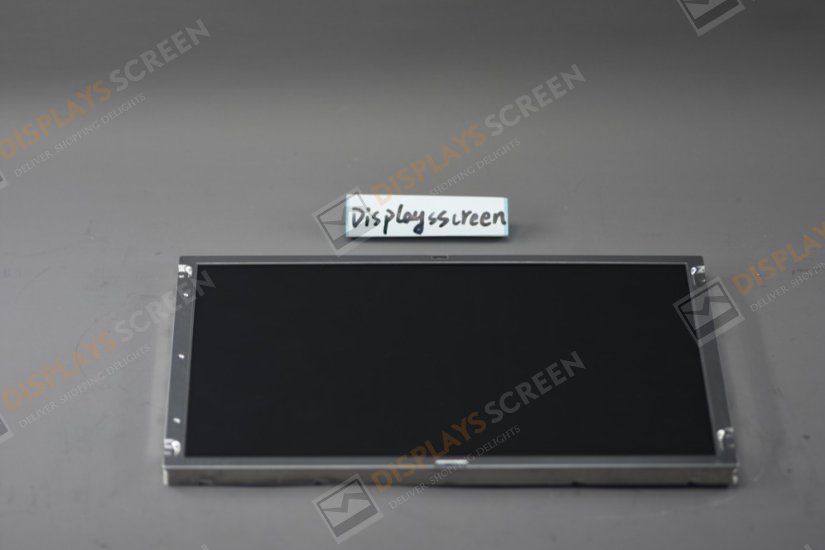

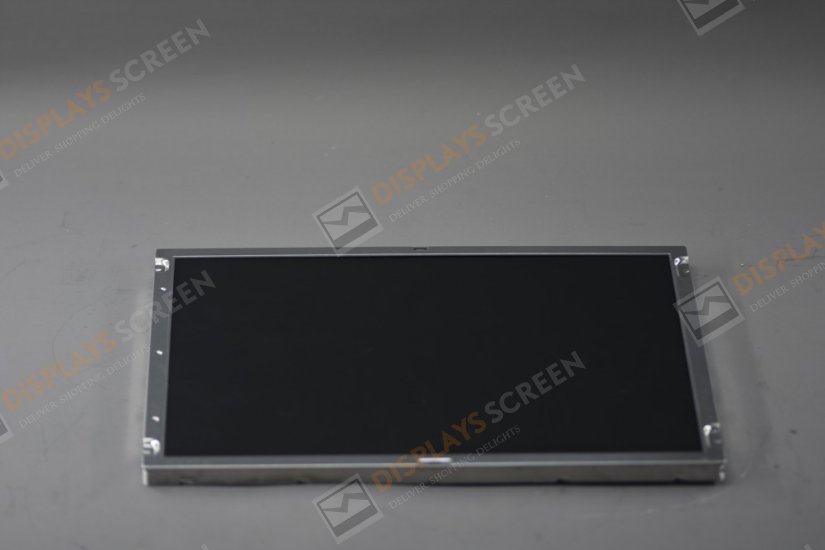

Panel brand: Sharp
Panel model: LQ150X1LW71N
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 15.0"(inches)
Width Height Rate: 4:3
Display Area: 304.1mm(H)x228.1mm(V)
Visual Area: 307.2mm(H)x231.1mm(V)
Resolution: 1024*768
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 250 CD/㎡(Typ.)
Contrast: 400:1 (Typ.)
Display color: 16.2M (6-bit+ frc)
Response Time:5/20 (Typ.) (Tr/Td) (ms)
Visual Angle: 85/85/85/85 (Typ.) (CR ≧ 10) (L/R/U/D)

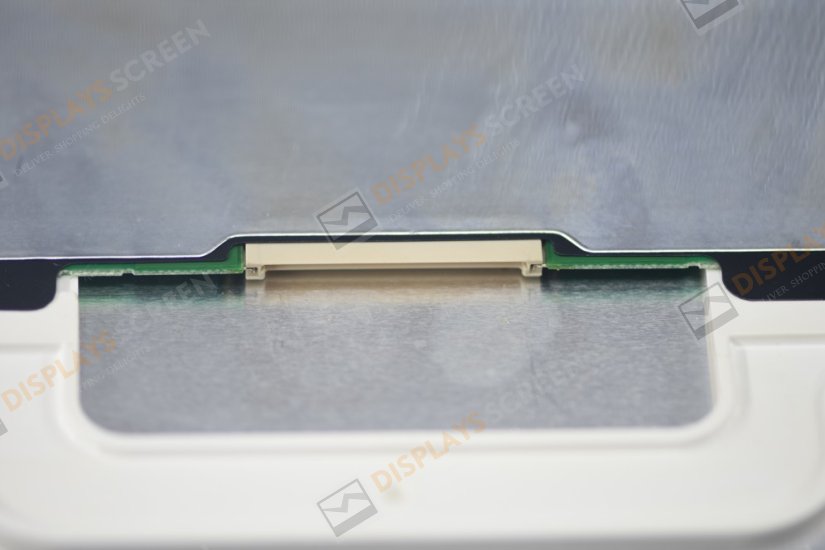

Connector: LVDS(1 ch, 8bit)
Panel voltage: 3.3V (Typ.)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
