Panel brand: Samsung

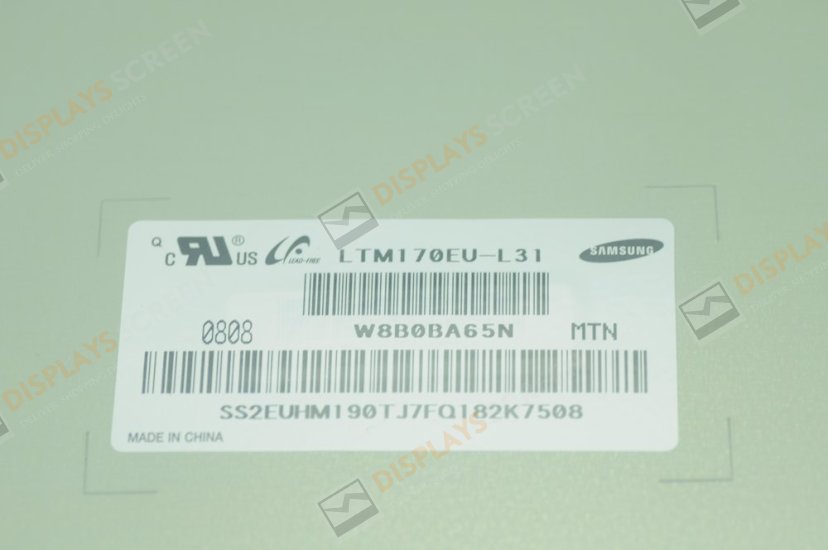

Panel model: LTM170EU-L31
Panel type: a-Si TFT-LCD
Panel size: 17.0"(inches)
Resolution: 1280*1024
Active Area: 337.9mmx270.3mm
Outline Size: 358.5mmx296.5mmx17.0mm
The display mode: TN, Normally white, transmissive
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 300 cd/㎡(Typ.)
Contrast: 1000:1 (Typ.)
Display color: 16.7M (6-bit+ Hi-FRC)
Response Time: 1.3/3.7 (Typ.)(Tr/Td) (ms)
Visual Angle: 80/80/80/80 (Typ.) (CR ≧ 10) (L/R/U/D)
Scanning Frequency: 60Hz
Lamp Type: 4pcs CCFL
Signal Connector: LVDS(2ch, 8-bit)
Panel voltage: 5.0V (Typ.)(VDD)
Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
