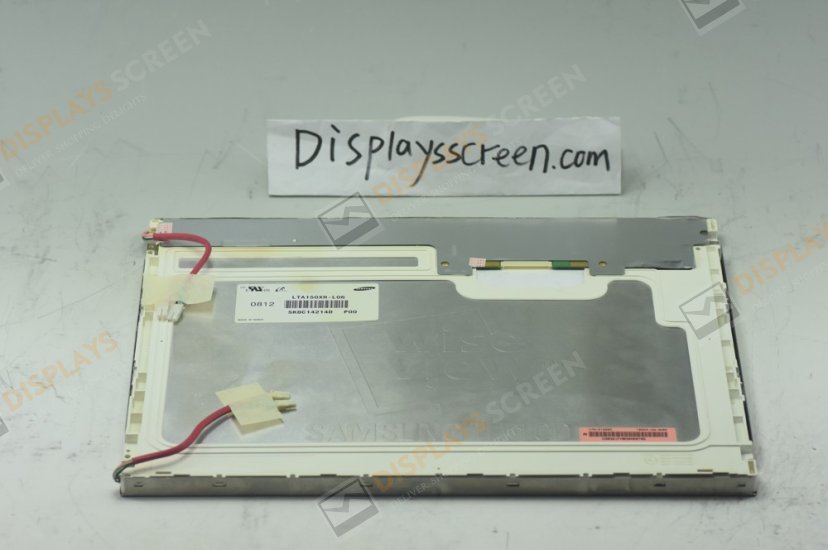

LTA150XH-L06 LCD Display Panel 15.0" 1024*768

$175.88
LCD-SAM-300110-ZKL-023

Quantity Discount
5 +
$167.09
10 +
$163.57
15 +
$160.05
20 +
$158.29
30 +
$154.77
*The discount will be reflected in the payment.
  • Shipping Weight: 2kg
  • Units in Stock : 1001
  • Manufactured by: Samsung
  • This product was added to our catalog on Wednesday 09 January, 2013.
Description

Panel brand: Samsung
Panel model: LTA150XH-L06
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 15" (inch)
Width Height Rate: 4:3
Display Area: 304.1mm(H)x228.1mm(V)
Visual Area: 307.2mm(H)x231.1mm(V)
Resolution:1024*768
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 400 cd/㎡(Typ.)
Contrast: 400:1 (Typ.)
Display color: 16.2M   (6-bit + FRC)
Response Time: 5/20(Typ.) (Tr/Td)(ms)
Visual Angle: 70/70/50/60(Typ.) (CR ≧ 10) (L/R/U/D)
Singal Type: LVDS (1 ch, 8bit)
Panel voltage: 3.3V (Typ.)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
