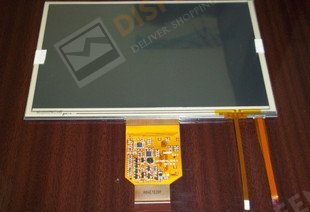

LMS700KF07 7 inch Industrial LCD Panel Display Screen 800*480LMS700KF07 7 inch Industrial LCD Panel Display Screen 800*480

LMS700KF07 7 inch Industrial LCD Panel Display Screen 800*480

$88.99
LCD-SAM-300110-ZKL-022

Quantity Discount
5 +
$84.54
10 +
$82.76
15 +
$80.98
20 +
$80.09
30 +
$78.31
*The discount will be reflected in the payment.
  • Shipping Weight: 1kg
  • Units in Stock : 1000
  • Manufactured by: Samsung
  • This product was added to our catalog on Wednesday 09 January, 2013.
Description

Panel brand: Samsung
Panel model: LMS700KF07
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 7.0"
Width Height Rate: 15:9
Display Area: 152.40mm(H)x91.44mm(V)
Visual Area: 250.4mm(H)x188.9mm(V)
Resolution:800*480
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 280 cd/㎡(Typ.)
Contrast: 400:1 (Typ.)
Display color: 262K/16.7M   (6-bit / 8-bit)
Response Time: 22(Typ.) (Tr/Td)(ms)
Visual Angle: 65/65/50/60(Typ.) (CR ≧ 10) (L/R/U/D)
Singal Type: Parallel RGB (1 ch, 8bit)
Panel voltage: 3.3V (Typ.)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
