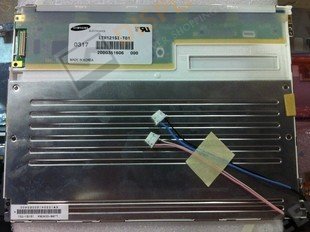

12.1" LTM121S1-T01 TFT LCD Screen LCD Display Panel 800*600

$165.99
LCD-SAM-300110-ZKL-021

Quantity Discount
5 +
$157.69
10 +
$154.37
15 +
$151.05
20 +
$149.39
30 +
$146.07
*The discount will be reflected in the payment.
  • Shipping Weight: 1kg
  • Units in Stock : 1000
  • Manufactured by: Samsung
  • This product was added to our catalog on Wednesday 09 January, 2013.
Description

Panel brand: Samsung
Panel model: LTM121S1-T01
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 12.1"
Width Height Rate: 4:3
Display Area: 246.0mm(H)x184.5mm(V)
Visual Area: 250.4mm(H)x188.9mm(V)
Resolution:800*600
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 300 cd/㎡(Typ.)
Contrast: 300:1 (Typ.)
Display color: 262K/16.7M   (6-bit / 8-bit)
Response Time: 5/25(Typ.) (Tr/Td)(ms)
Visual Angle: 60/60/45/55(Typ.) (CR ≧ 10) (L/R/U/D)
Connector: CMOS(1 ch, 6bit)
Panel voltage: 3.3V (Typ.)

Applications: Industrial control, Industrial Monitor, Maintenance for Mechanic, Medical Imaging Systems, Safety Equipment, Military, Bank Terminal, ATM, Ship, Train LCD Media player, Portable DVD, Car Mobile media etc.
