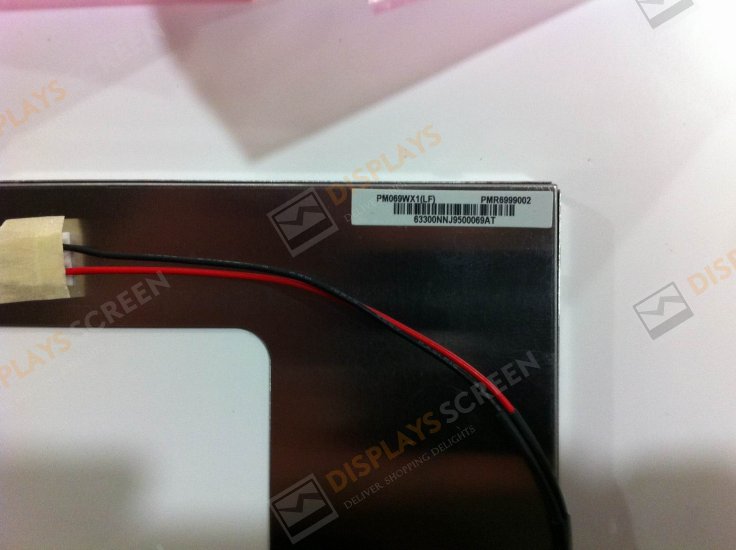

Original PM069WX1 6.9 inch LCD Display Panel LCD ScreenOriginal PM069WX1 6.9 inch LCD Display Panel LCD Screen

Original PM069WX1 6.9 inch LCD Display Panel LCD Screen

$139.99
LCD-PVI-300111-ZKL-003

Quantity Discount
5 +
$132.99
10 +
$130.19
15 +
$127.39
20 +
$125.99
30 +
$123.19
*The discount will be reflected in the payment.
  • Shipping Weight: 0.5kg
  • Units in Stock : 1000
  • Manufactured by: PVI
  • This product was added to our catalog on Thursday 10 January, 2013.
Description

Panel brand: PVI
Panel model: PM069WX1
Panel type: a-Si TFT-LCD
Panel size: 6.9"(inches)
The display mode: TN, Normally white, transmission type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 500 cd/㎡(Typ.)
Contrast: 400:1 (Typ.)
Display color: 262K (6-bit)
Response Time: 15/25 (Typ.) (Tr/Td) (ms)
Visual Angle: 60/60/40/55 (Typ.) (CR ≧ 10) (L/R/U/D)
Lamp Type: 3S14P WLED
Signal Connector: TTL (1 ch, 6-bit)
Panel voltage: 3.3/3.3/9.5/17/-8V (Typ.)(VCC/VDD1/VDD2/VGG/VEE)
