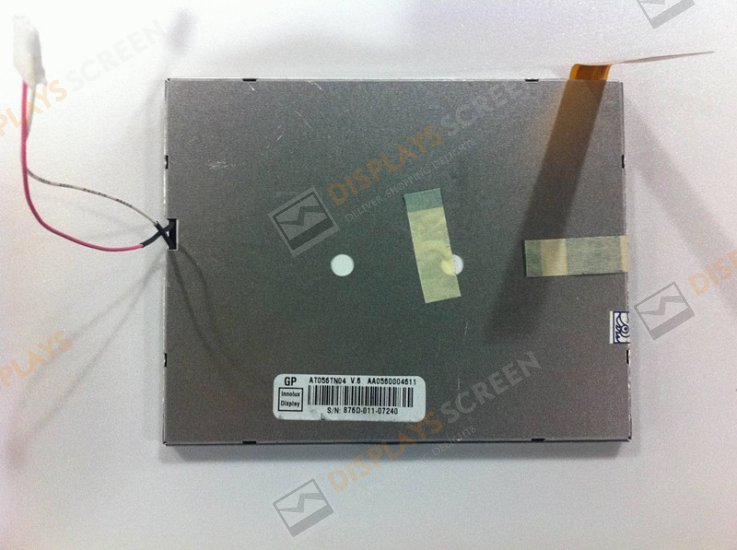

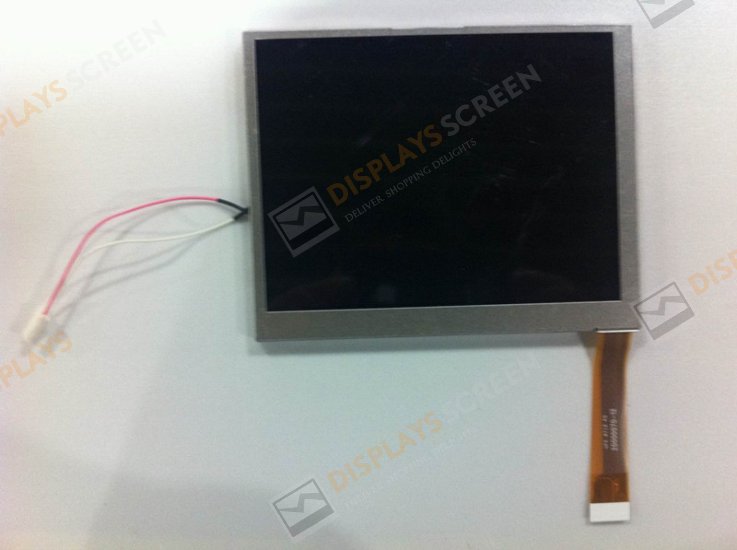

Panel brand: INNOLUX

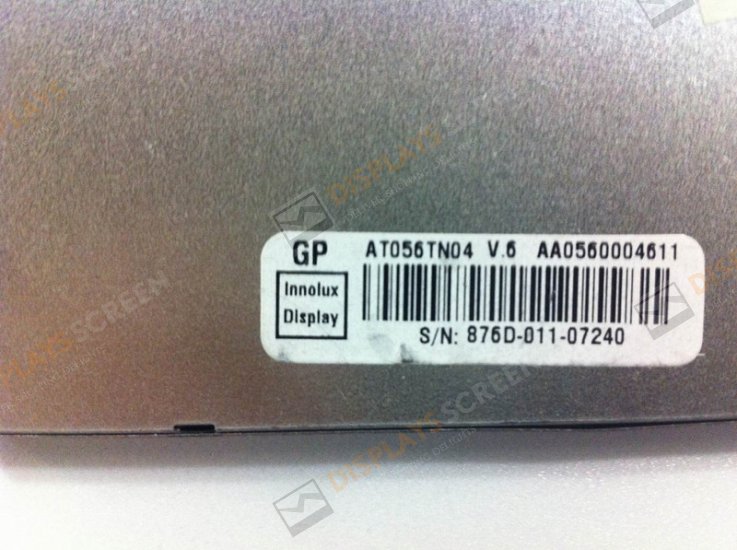

Panel model: AT056TN04 V.6
Panel type: a-Si TFT-LCD, LCD screen
Panel size: 5.6" (inch)
Width Height Rate: 4:3
Resolution:320*234
The display mode: TN, Normally White, Transmission-type
Surface treatment: Matte, hard-core coating (3H)
Panel brightness: 200 cd/㎡(Typ.)
Contrast: 1000:1 (Typ.)
Display color: Panchromatic
Response Time: 15/20(Typ.) (Tr/Td)(ms)
Visual Angle: 65/65/45/65(Typ.) (CR ≧ 10) (L/R/U/D)
Lamp Type: 2S7P WLED
Singal Connector Type: TFT Specific Analog RGB
Panel Voltage: (3.3/5)/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL)
